Model nonlinear dynamic eQTL effects in continuous cell states
Chris Dong
Department of Statistics and Data Science, University of California, Los Angelescycd@g.ucla.edu
Yihui Cen
Department of Computational Medicine, University of California, Los Angelesyihuicen@g.ucla.edu
13 February 2026
Source:vignettes/scDesignPop-dynamic-eQTL-NL.Rmd
scDesignPop-dynamic-eQTL-NL.Rmd
library(scDesignPop)
library(SingleCellExperiment)
library(SummarizedExperiment)
library(scater)
theme_set(theme_bw())Introduction
scDesignPop can also be extended to other eQTL effects. Here we show how scDesignPop can also model nonlinear dynamic eQTL effects in continuous cell states to mimick the real data better.
Library and data preparation
Here, we use a subset of the B cells from OneK1K cohort as example.
We load an example SingleCellExperiment object example_sce
with 817 genes and 3726 cells and an example eQTL genotype dataframe
example_eqtlgeno to demonstrate the main tutorial. These
two objects contains the gene expression and SNP genotypes of 100
anonymized individuals while the eQTL genotype dataframe provides 2406
putative cell-type-specific eQTLs. For non linear dynamic eQTL modeling,
we prepare a squared pseudotim column
slingPseudotime_1_sq.
library(scDesignPop)
library(SingleCellExperiment)
library(SummarizedExperiment)
library(scater)
data("example_sce_Bcell")
data("example_eqtlgeno_Bcell")
col_Bcell <- colData(example_sce_Bcell)
colData(example_sce_Bcell)$slingPseudotime_1_sq <- col_Bcell$slingPseudotime_1^2
head(colData(example_sce_Bcell))
#> DataFrame with 6 rows and 6 columns
#> cell_type indiv sex age slingPseudotime_1
#> <factor> <factor> <factor> <integer> <numeric>
#> AAAGATGGTTATGCGT-1 bin SAMP68 1 69 0.215705
#> AACTCAGGTCCGCTGA-1 bin SAMP68 1 69 0.835651
#> AAGTCTGTCGTACGGC-1 bin SAMP68 1 69 0.532256
#> ACACCGGCACCCTATC-1 bin SAMP68 1 69 0.423183
#> ACGCCGAGTCAGAGGT-1 bmem SAMP68 1 69 0.268401
#> ACTGAGTCAGGATCGA-1 bin SAMP68 1 69 0.480905
#> slingPseudotime_1_sq
#> <numeric>
#> AAAGATGGTTATGCGT-1 0.0465288
#> AACTCAGGTCCGCTGA-1 0.6983129
#> AAGTCTGTCGTACGGC-1 0.2832960
#> ACACCGGCACCCTATC-1 0.1790840
#> ACGCCGAGTCAGAGGT-1 0.0720393
#> ACTGAGTCAGGATCGA-1 0.2312694Modeling and simulation
Step 1: construct a data list
To run scDesignPop, a list of data is required as input. This is done
using the constructDataPop function. A
SingleCellExperiment object and an eqtlgeno
dataframe are the two main inputs needed. The eqtlgeno
dataframe consists of eQTL annotations (it must have cell state, gene,
SNP, chromosome, and position columns at a minimum), and genotypes
across individuals (columns) for every SNP (rows). The structure of an
example eqtlgeno dataframe is given below.
data_list <- constructDataPop(
sce = example_sce_Bcell,
eqtlgeno_df = example_eqtlgeno_Bcell,
new_covariate = as.data.frame(colData(example_sce_Bcell)),
overlap_features = NULL,
sampid_vec = NULL,
copula_variable = "slingPseudotime_1",
n_quantiles = 10,
slot_name = "counts",
snp_mode = "single",
time_colname = "slingPseudotime_1",
celltype_colname = "cell_type",
feature_colname = "gene_id",
snp_colname = "snp_id",
loc_colname = "POS",
chrom_colname = "CHR",
indiv_colname = "indiv",
prune_thres = 0.9
)Step 2: fit marginal model
Next, a marginal model is specified to fit each gene using the
fitMarginalPop function.
Here we use a Negative Binominal as the parametric model using
"nb".
marginal_list <- fitMarginalPop(
data_list = data_list,
mean_formula = "(1|indiv) + slingPseudotime_1 + slingPseudotime_1_sq",
model_family = "nb",
interact_colnames = c("slingPseudotime_1", "slingPseudotime_1_sq"),
parallelization = "pbmcapply",
n_threads = 20L,
loc_colname = "POS",
snp_colname = "snp_id",
celltype_colname = "cell_type",
indiv_colname = "indiv",
filter_snps = TRUE,
snpvar_thres = 0,
force_formula = FALSE,
data_maxsize = 1
)Step 3: fit a Gaussian copula
The third step is to fit a Gaussian copula using the
fitCopulaPop function.
set.seed(123, kind = "L'Ecuyer-CMRG")
copula_fit <- fitCopulaPop(
sce = example_sce_Bcell,
assay_use = "counts",
input_data = data_list[["new_covariate"]],
marginal_list = marginal_list,
family_use = "nb",
copula = "gaussian",
n_cores = 2L,
parallelization = "mcmapply"
)
RNGkind("Mersenne-Twister") # resetStep 4: extract parameters
The fourth step is to compute the mean, sigma, and zero probability
parameters using the extractParaPop function.
para_new <- extractParaPop(
sce = example_sce_Bcell,
assay_use = "counts",
marginal_list = marginal_list,
n_cores = 2L,
family_use = "nb",
indiv_colname = "indiv",
new_covariate = data_list[["new_covariate"]],
new_eqtl_geno_list = data_list[["eqtl_geno_list"]],
data = data_list[["covariate"]],
parallelization = "pbmcmapply"
)Step 5: simulate counts
The fifth step is to simulate counts using the
simuNewPop function.
set.seed(123)
newcount_mat <- simuNewPop(
sce = example_sce_Bcell,
mean_mat = para_new[["mean_mat"]],
sigma_mat = para_new[["sigma_mat"]],
zero_mat = para_new[["zero_mat"]],
quantile_mat = NULL,
copula_list = copula_fit[["copula_list"]],
n_cores = 2L,
family_use = "nb",
nonnegative = TRUE,
input_data = data_list[["covariate"]],
new_covariate = data_list[["new_covariate"]],
important_feature = copula_fit[["important_feature"]],
filtered_gene = data_list[["filtered_gene"]],
parallelization = "pbmcmapply"
)Visualization using PHATE

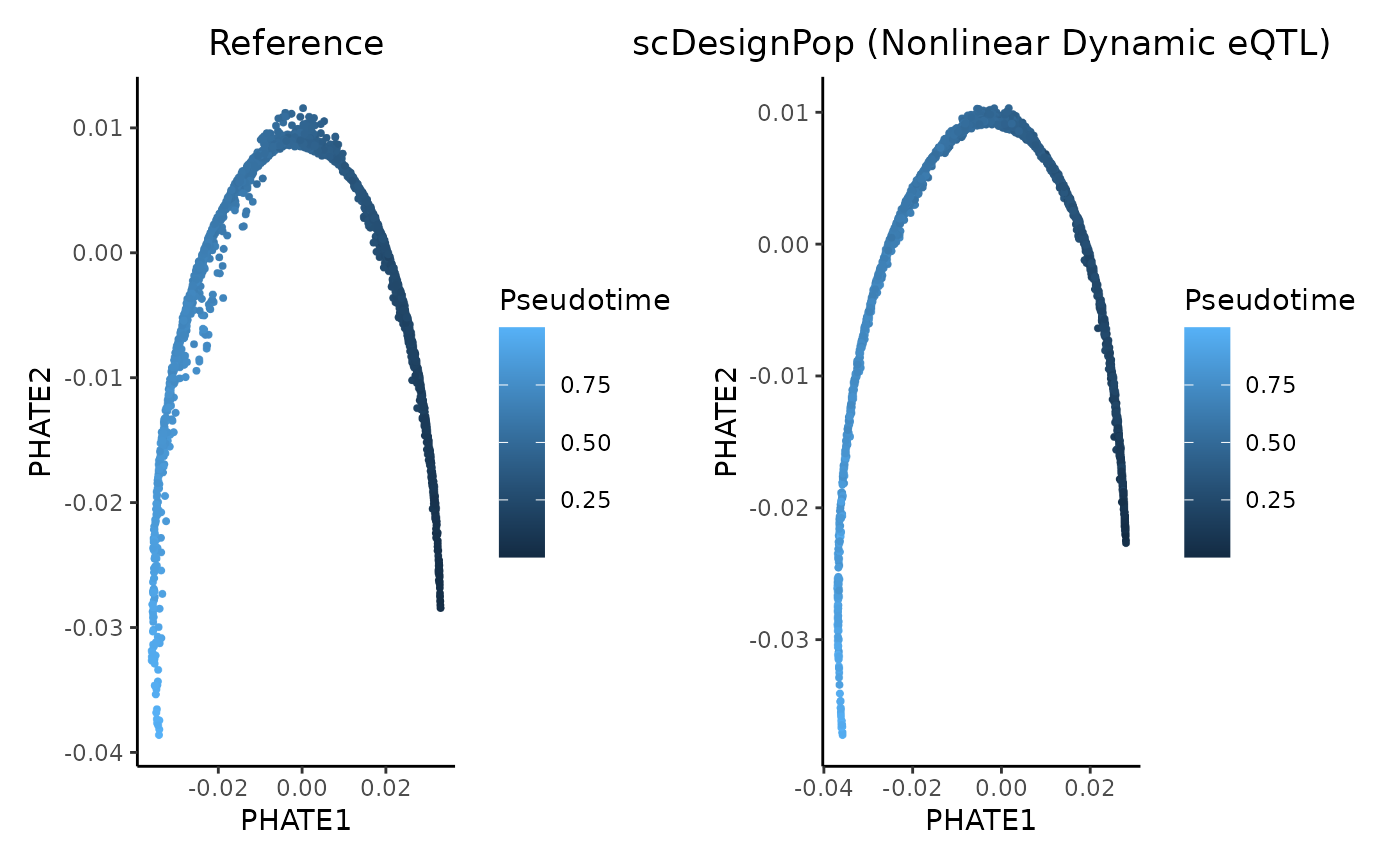

The simulated data can be visualized using PHATE dimensions.
library(ggplot2)
library(phateR)
# run PHATE for reference data
ph <- phate(t(counts(example_sce_Bcell)))
#> Calculating PHATE...
#> Running PHATE on 3726 observations and 817 variables.
#> Calculating graph and diffusion operator...
#> Calculating PCA...
#> Calculated PCA in 0.28 seconds.
#> Calculating KNN search...
#> Calculated KNN search in 0.97 seconds.
#> Calculating affinities...
#> Calculated affinities in 0.03 seconds.
#> Calculated graph and diffusion operator in 1.28 seconds.
#> Calculating landmark operator...
#> Calculating SVD...
#> Calculated SVD in 0.23 seconds.
#> Calculating KMeans...
#> Calculated KMeans in 3.76 seconds.
#> Calculated landmark operator in 4.42 seconds.
#> Calculating optimal t...
#> Automatically selected t = 18
#> Calculated optimal t in 0.76 seconds.
#> Calculating diffusion potential...
#> Calculated diffusion potential in 0.12 seconds.
#> Calculating metric MDS...
#> Calculated metric MDS in 3.64 seconds.
#> Calculated PHATE in 10.22 seconds.
reducedDims(example_sce_Bcell) <- SimpleList(PHATE = ph$embedding)
# run PHATE for simulated data
ph_simu <- phate(t(counts(simu_sce_Bcell)))
#> Calculating PHATE...
#> Running PHATE on 3726 observations and 817 variables.
#> Calculating graph and diffusion operator...
#> Calculating PCA...
#> Calculated PCA in 0.26 seconds.
#> Calculating KNN search...
#> Calculated KNN search in 0.85 seconds.
#> Calculating affinities...
#> Calculated affinities in 0.01 seconds.
#> Calculated graph and diffusion operator in 1.13 seconds.
#> Calculating landmark operator...
#> Calculating SVD...
#> Calculated SVD in 0.23 seconds.
#> Calculating KMeans...
#> Calculated KMeans in 4.42 seconds.
#> Calculated landmark operator in 5.10 seconds.
#> Calculating optimal t...
#> Automatically selected t = 16
#> Calculated optimal t in 0.72 seconds.
#> Calculating diffusion potential...
#> Calculated diffusion potential in 0.11 seconds.
#> Calculating metric MDS...
#> Calculated metric MDS in 3.50 seconds.
#> Calculated PHATE in 10.56 seconds.
reducedDims(simu_sce_Bcell) <- SimpleList(PHATE = ph_simu$embedding)
# visualize
p <- ggplot(reducedDim(example_sce_Bcell),
aes(PHATE1, PHATE2, color = example_sce_Bcell$slingPseudotime_1)) +
ggrastr::rasterise(
geom_point(size = 0.5),
dpi = 300
) +
labs(color = "Pseudotime") +
theme_classic() +
theme(plot.title = element_text(hjust = 0.5)) +
ggtitle("Reference")
p_simu <- ggplot(reducedDim(simu_sce_Bcell),
aes(PHATE1, PHATE2,
color = colData(simu_sce_Bcell)$slingPseudotime_1)) +
ggrastr::rasterise(
geom_point(size = 0.5),
dpi = 300
) +
labs(color = "Pseudotime") +
theme_classic() +
theme(plot.title = element_text(hjust = 0.5)) +
ggtitle("scDesignPop (Nonlinear Dynamic eQTL)")
patchwork::wrap_plots(p, p_simu, ncol = 2)
